Thermal Cutoffs / Thermal Fuse

Thermal Cutoffs / Thermal Fuse

SW-1 Series SW-2 Series SW-3 Series SW-5 Series SW-6 Series
SW-1 Series
RATED VOLTAGE : 250V, ac (and 125V)RATED CURRENT : 10A (and 15A)INTERRUPTING CURRENT : 250V, ac 15ATRANSIENT OVERLOAD TEST CURRENT : dc current pulses, with an amplitude 150 A and a duration of 3 ms with 10 s intervals, are applied for 100 successive cycles through the current path.

SW-2 SeriesRATED VOLTAGE : 250V, acRATED CURRENT : 2AINTERRUPTING CURRENT : 250V, ac 3ATRANSIENT OVERLOAD TEST CURRENT :dc current pulses, with an amplitude 30A and a duration of 3 ms with 10 s intervals, are applied for 100 successive cycles through the current path.
SW-3 Series
RATED VOLTAGE : 250V, acRATED CURRENT :15A INTERRUPTING CURRENT : 250V, ac 22.5ATRANSIENT OVERLOAD TEST CURRENT :dc current pulses, with an amplitude 225 A and a duration of 3 ms with 10 s intervals, are applied for 100 successive cycles through the current path.

SW-5 Series
RATED VOLTAGE : 250V, ac (and 125V -*)RATED CURRENT : 5A (and 6A -*)INTERRUPTING CURRENT : 250V, ac 7.5ATRANSIENT OVERLOAD TEST CURRENT :dc current pulses, with an amplitude 75 A and a duration of 3 ms with 10 s intervals, are applied for 100 successive cycles through the current path.
SW-6 Series
RATED VOLTAGE : 50V, dc RATED CURRENT : 2A or 4AINTERRUPTING CURRENT : 50V, dc 3A or 6A

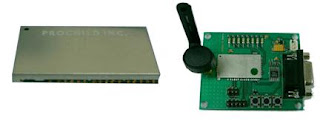

RF Module

AR1000 / AR1010 is a highly intergrated single chip stereo FM radio receiver for all kinds of applications.

AR1000 & AR1010 Key FeaturesWorldwide FM band support: 76~108MHzDigital low-IF receiverFrequency synthesizer with integrated VCOSeek tuningAutomatic frequency control (AFC)Automatic gain control (AGC)Excellent overload immunitySignal strength measurementProgrammable de-emphasis (50-/75us)Adaptive noise suppressionLine-level analog outputVolume controlIntegrated LDO and XORDS/RBDSSingle control interface for 2-wire and 3-wire

Application Mobile PhonesMP3 PlayersPortable CD PlayersPDAsNotebook PCs

NTC Thermistor

Features

* Main Composition - Ceramic material : Mn3O4, NiO, Co3O4, Fe2O3

- Internal electrode : Pt, Pd, Ag-Pd

* Semi-conductive property - Have an electrical characteristic of decreasing resistance with increasing of an ambient temperature, so called semi-conductive device of metal oxide.

* Protect the electronic equipment from high purity and uniform materials to achieve a construction of near-perfect theoretical density. This ensures small size, tight resistance and B value torelance, and fast response against temperature variation, making a highly sensitive and precision component. NTC Thermistor is available in wide range to meet your demands for small size and high reliability.

Application

* Temperature compensation of transister, IC, TCXO

* Temperature compensation of battery charger

* Temperature compensation of LCD* Car navigation system

* Medical thermometer* Computer peripherals [CPU battery, Hard/Floppy disk]. etc.
Our Products

- AT type ( Liquid Epoxy)

- 3AT type ( short coating)

- LT type( Short coating)

- AT type (Powder Epoxy)

- 3AT type (Long Coating)

- LT type (Long coating)

- WT type ( Cu, Cp wire )

- HT type ( Diode Type)

- DT type( Disk )

- TT type (Teflon wire)

- ET type ( Enamel wire)

- PT type ( PVC wire)

- Multi-layer Chip Thermistor (SMD type)

- Hybrid Thermistor (SMD type)- Bare Chip

Any question please let us know we are glad to serve you at all time

MLCC

MLCC
Definition* MLCC is Multi-Layer Ceramic Capacitor.
Features* Main Composition - Ceramic material : BaTio3 - Internal electrode : Ag-Pd* High reliability with Ag-Pd internal electrode* Focus on high voltage MLCC* Custom product available
High Voltage Chip CapacitorFeedThrough Chip Capacitor
Any question please let us know we are glad to serve you at all time

Humidity Sensor

Specifications:
Humidity sensors made of a thermosetting resin developed by our technology for water resistance and durability, excellent compared with other products.

GPS Module

- High acquisition and tracking sensitivity

- High sensitivity for indoor fixes

- Low power consumption

- Real-time navigation for location-based services

- Extremely fast TTFFs at low signal levels

- Highly integrated component

- Automatic pick and place assembly

- Reflow solderable- Maximum flexibility

- Extensively configurable

- EMI shielded- 200,000+ effective correlators for fast TTFF

- Supports 20-channel GPS receiver

- Digital, RF and 4Mb Flash in a single package(GSC3f_LP IC)

- GSC3f_LP IC with ARM7TDMI inside

- 3 GPIO ports

- Integrated TCXO (± 0.5 ppm)

- Adaptive trickle power mode, Push-to-Fix, Advanced Power Management

SBAS (WAAS and EGNOS) support- Small size 16mm X 13mm X 2.8 mm
SiRFSTARIII

FM Transmitter

FM Transmitter
* Appearance Unit shall not have any excessive strain, bruise, uneven plating etc. which decrease its commercial value.
* General Specifications.1. Frequency Range : 87.5 ~ 108MHz2. Operating Supply Voltage : 2.7 ~ 3.6V3. Operating Temperature : -25 ~ +85oC4. Humidity : 85% MAX
